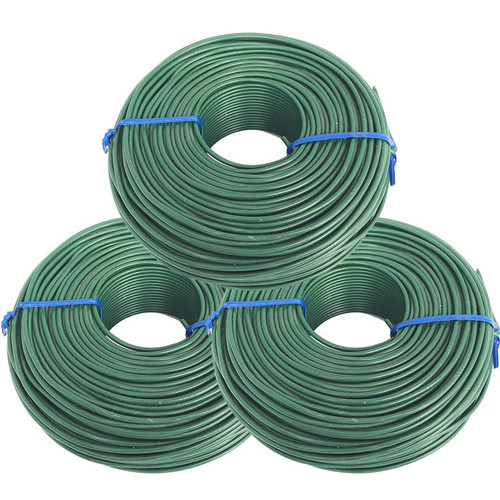

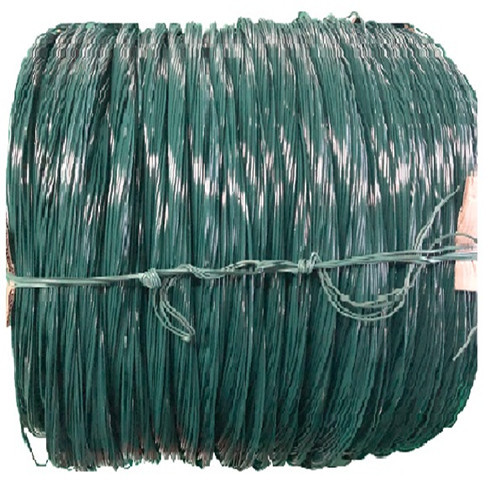

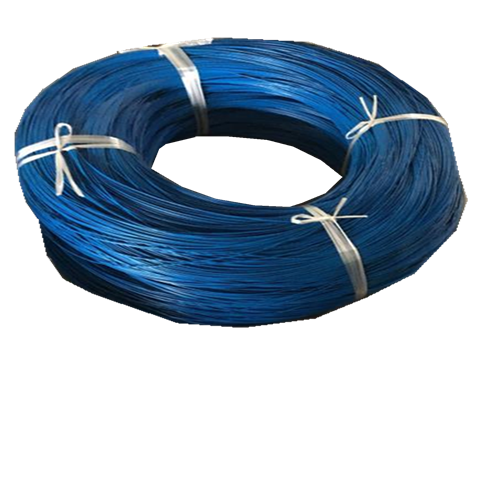

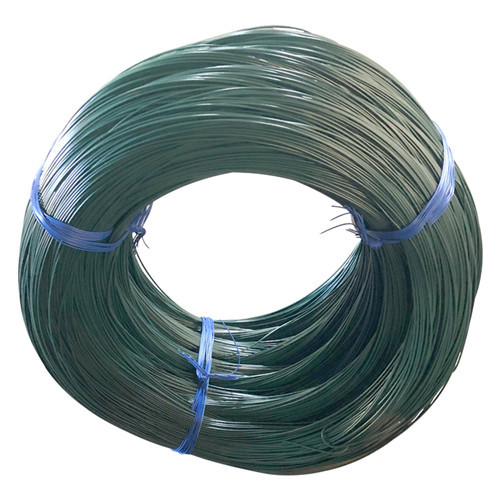

PVC Or Plastic Coated Steel Wire
PVC or plastic coated steel wire is coated with a layer of polyvinyl chloride or polyethylene on the surface of the annealed wire, galvanized wire, stainless steel wire and other materials. The coating layer is firmly fitted to the metal wire to form the features of anti-aging, anti-corrosion, anti-cracking, long life and other characteristics. Galvanized and plastic coated wire is used in manufacturing of binding wire, tie wire, plant support wire, meshes and fences. PVC is the most popular plastic for coating wires, as it is relatively low in cost, resilient, fire retardant and possesses good insulating properties.
►Specification
Feature: Wear-resistant, Corrosion-resistant, Crack-resistant. Its service life is several times as long as galvanized iron wires.
Main Parameters of Plastic Coated Steel/Iron Wire:
Materials before PVC coating:
Steel wire;
galvanized wire;
redrawing wire;
annealed wire;
stainless steel wire.
Average tensile strength for the PVC coated wire ranges from 350N/MM2-900N/MM2, elongation ranges from 8% -15%.
►Plastic/PVC Coating Color:
Common colors are grass green (light green), dark green (dark green),Gray, White and black ,etc
►General Wire diameter with and without plastic coating:
Wire diameter before coating: 0.6mm-4.0mm (wire gauge BWG23-8)
Wire diameter with coating: 0.9mm-5.0mm (BWG20-7)
Plastic layer (0.4mm-1.5mm), wire diameter deviation (+0.05 mm/-0.05mm Max)
►Coated Wire Applications:
The most popular use for PVC coated wire is in the construction of chain link fences for industrial security fences, freeways and tennis courts. It is also used in other applications such as coat hangers and handles.
1. Tie Wire / Binding Wire:
PVC / PE / Vinyl coated or painted wire is made in forms easy for binding and tying uses. The wire is popularly made into cut wire, cut and looped wire, or wound in coils, around sticks.
2. Hanger Wire
3. Mesh and Fencing Wire: For making of chain link fence, gabions and various meshes.
4. Vegetable and plant support wire
►Package:
a. inside with plastic film, outside with woven bag;
b. inside with plastic film, outside with hessian cloth;
c. by woven or hessian cloth, then by pallet;
d. as customer’s request.
