Galvanized Wire

Item No.: 8002

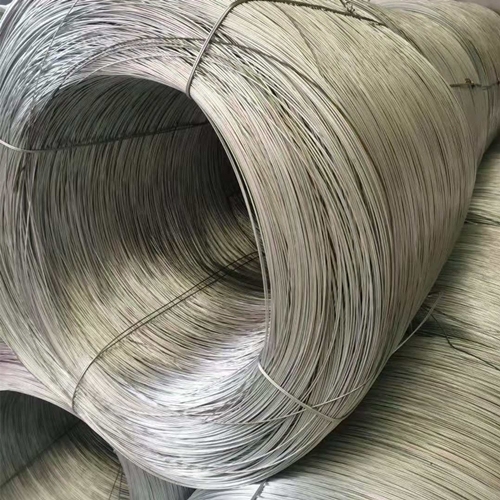

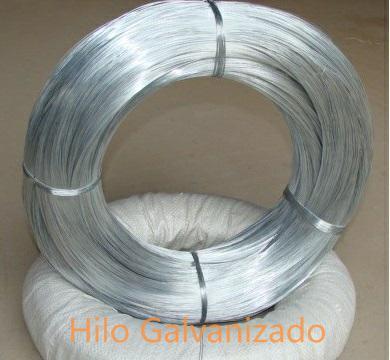

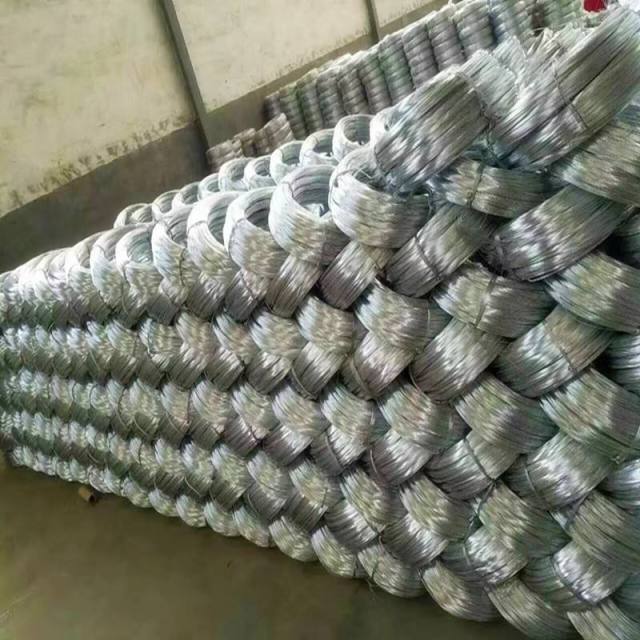

Galvanized iron wire also named GI wire.
Galvanized wire is applied in mesh weaving and highway fences making.
Materials: mild steel, annealed wire.
Wire diameter: 0.7mm - 4.5mm.
Elongation: commonly 20% - 30%.
Tensile strength: usually 350 - 550 MPa
INQUIRY
Description


Galvanized iron wire / GI wire

Galvanized wire is applied in mesh weaving and highway fences making.

Materials: mild steel, annealed wire.
Wire diameter: 0.7mm - 4.5mm.
Elongation: commonly 20% - 30%.
Tensile strength: usually 350 - 550 MPa.
Zinc coated: Max 300g/m2.
Surface treatments: electro galvanized, hot-dip galvanized, zinc coating.
Types: electro galvanized wire, hot-dip galvanized wire, Galfan wire.
Features: good ductility, excellent elasticity, anti-corrosion.

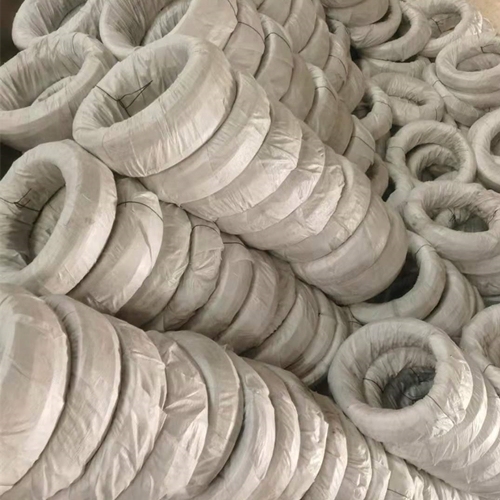

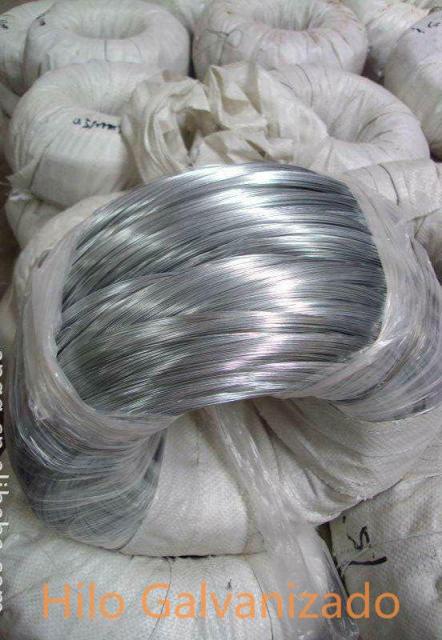

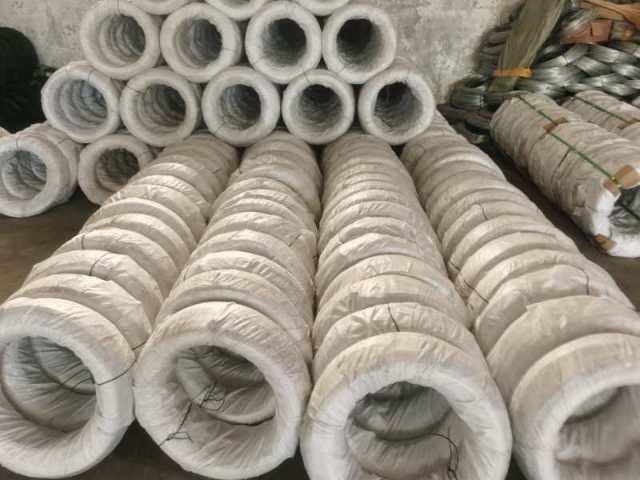

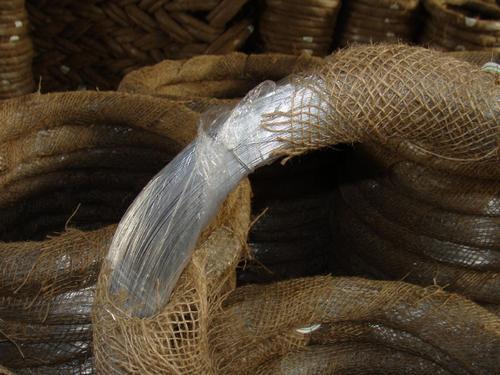

Packing: Coils or spools, cartons or pallets. Inside with plastic cover and outside with hessian, or inside with plastic cover and outside with woven bag.

Applications:

  1. Used in mesh weaving, crafts making.
  2. Used as parts in communication devices.
  3. Used as tie wire in products packaging, construction.

►Electro galvanized wire

Material: Top quality of low carbon wire rod
Tensile strength:350mpa-550mpa/mm2
Zinc coated : 10g/m2 to 30g/m2
Applications: Galvanized iron wire is mainly used as wire for meshes, spring wires, rope wires, knitting wires, scrubbing wires, wire for control cable, wire for braiding hoses, wire for conveyor belts, wires for welding, Tig and Mig wires, nail wires, wires for constructions, stitching Wire, etc.
Wire diameter: 0.15mm - 5.0mm.
Features: shiny and beautiful surface, anti-corrosion, uniform zinc coating.

►Hot-dip galvanized wire

Hot dipped galvanized steel wire
Material: High quality of low carbon steel rod or High carbon steel wire rod
Tensile strength:350-1600N/mm2
Zinc coated : 40g/m2 to 280g/m2
Applications: Galvanized iron wire is mainly used as wire for meshes, spring wires, rope wires, knitting wires, scrubbing wires, wire for control cable, wire for braiding hoses, wire for conveyor belts, wires for welding, Tig and Mig wires, nail wires, wires for constructions, stitching Wire, etc.
Wire diameter: 0.2mm - 4.0mm.
Wire gauge: 8 - 36 gauge.
Features: thick zinc coating, fast production speed, good corrosion resistance, excellent flexibility.

►Galfan Wire

Wire diameter: 0.19 - 5mm.
Zinc coated: 90% - 95%.
Features: excellent corrosion resistance, about two times that of normal galvanized wire.
Application: mainly used for making gabion mesh.

Production process:

Steel rod - Drawing modeing - Pickling derusting - Heat diping - Chilling - Finished products

Gauge SWG in mm BWG in mm metric mm Common weight/coil
8 # 4.06 4.19 4.00 50-100kgs
10# 3.25 3.40 3.50 50-100kgs
12# 2.64 2.77 2.80 50-100kgs
14# 2.03 2.11 50-100kgs
16# 1.63 1.65 1.65 50-100kgs
18# 1.22 1.25 1.20 5-25kgs
20# 0.91 0.89 0.90 5-25kgs
21# 0.81 0.813 0.80 5-25kgs
22# 0.71 0.711 0.70 5-25kgs
