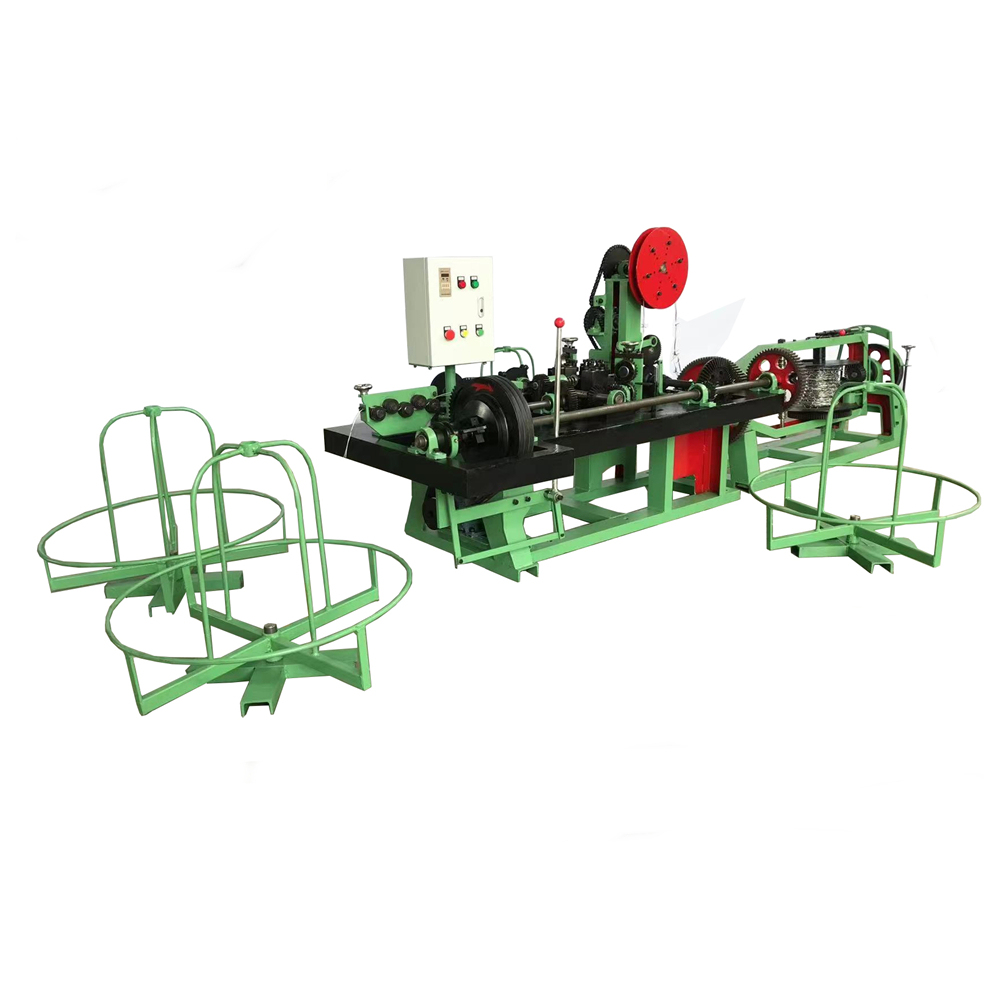

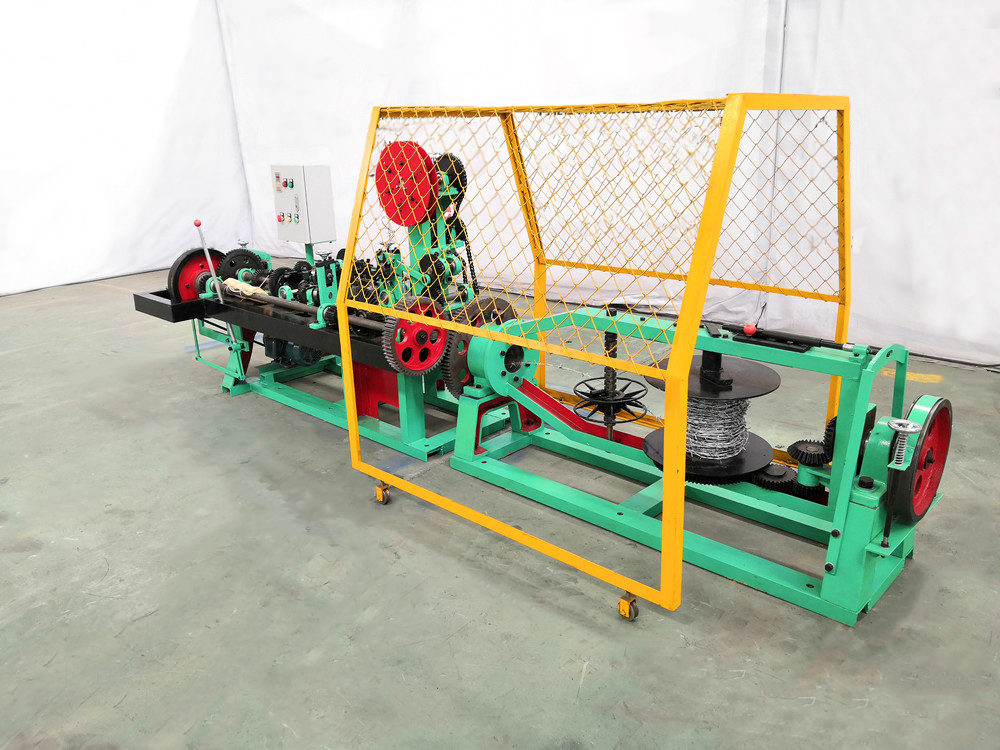

Barbed Wire Machine produces barbed wire. Barbed wire is used for protection use, in playground fence, livestock feeding or national border, in national defense, agriculture, animal husbandry, expressway, etc. We always keep the best professional design and manufacturing technology in this barbed wire machine for many years.

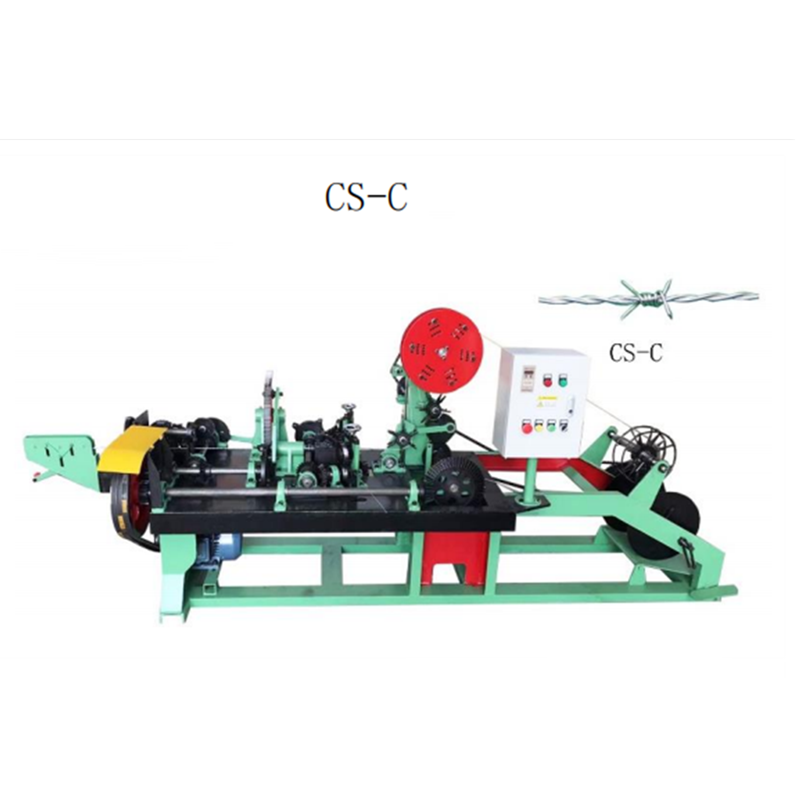

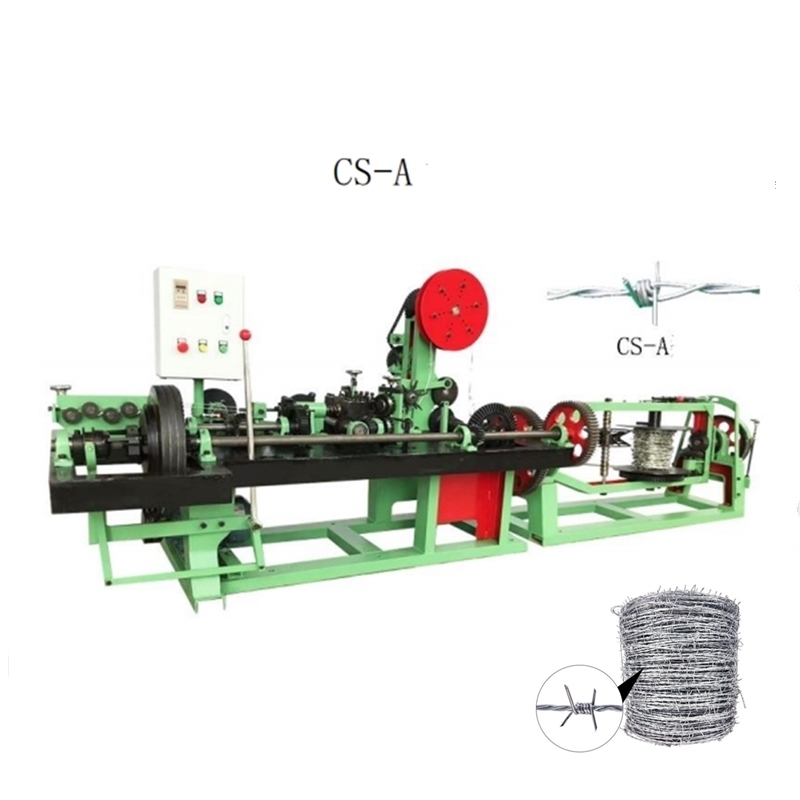

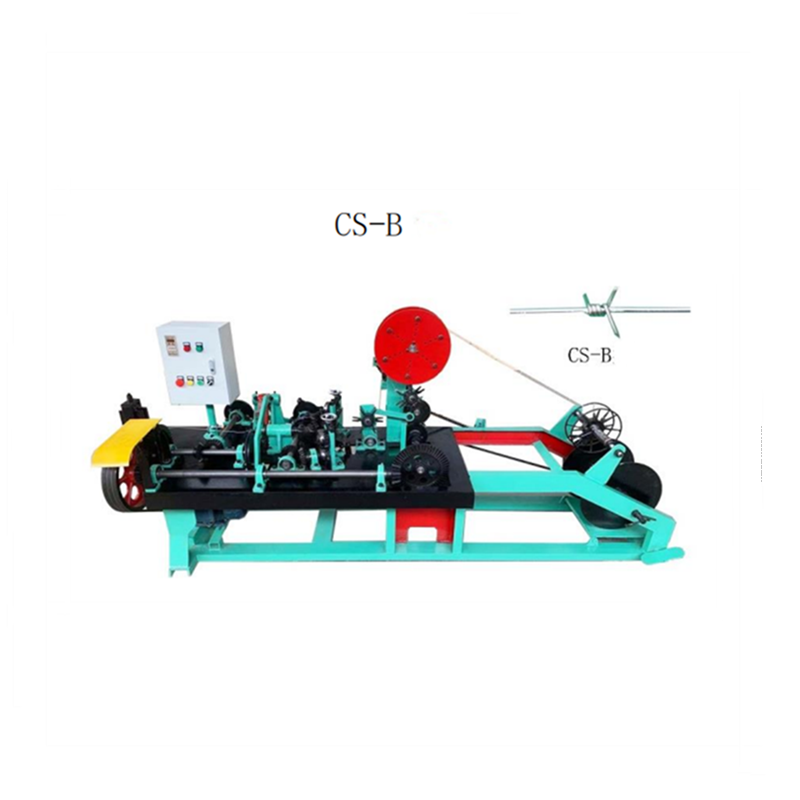

We manufacture three models of barbed wire fence machine: CS-A is a normal twisted barbed wire machine; CS-C is a double reverse twist barbed wire machine; CS-B is a single barbed wire making machine.
1.Technical Parameter:
| Model | CS-A | CS-B | CS-C |
| Main wire diameter | 1.5-3.0mm | 2.0-3.0mm | 1.6-2.8mm |
| Barbed wire diameter | 1.6-2.8mm | 1.6-2.8mm | 1.6-2.2mm |
| Barbed space | 3”, 4”, 5” | 4”, 5” | 4”, 5” |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Raw material | Galvanized wire or PVC coated wire. | Galvanized wire | Galvanized wire |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 50kg/h,18m/min |
| Total weight | 1050KG | 1000KG | 1050KG |
| Packing size | 5.9CBM | 5.8CBM | 5.9CBM |
2.Superiorities
Manually installation, Easy to set up;
Steel cover on driving shaft for safety operation;
Saving materials and high capacity;
Counter to count the number of barbs and calculate length of barbed wire.
Button switches and leveler to start and stop machine easily.
Quick and easy roll extraction from the machine.
Guiding system to avoid wire snarls.
3.Finished product
Barbed wire is used for protection use, in playground fence, livestock feeding or national boarder, in national defense, agriculture, animal husbandry, expressway, etc.
