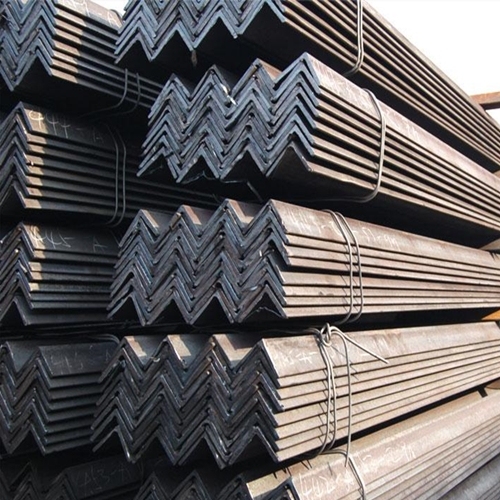

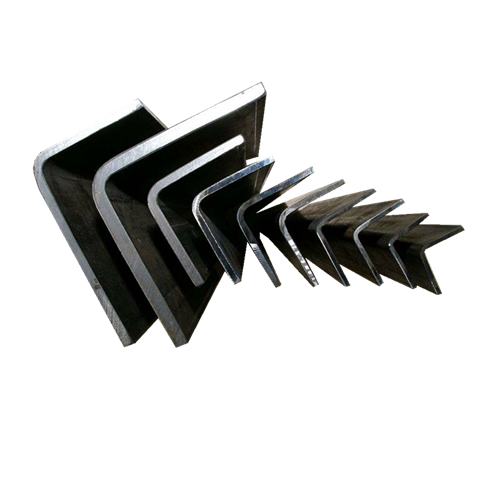

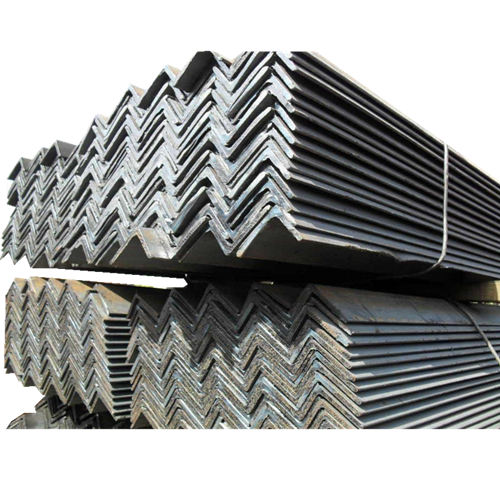

| UNEQUAL STEEL ANGLE | |||||
| JIS STANDAR UNEQUAL ANGLE | |||||
| STANDARD: JIS G 3192-2006 | |||||
| STEEL GRADE: JIS G 3101 SS400 | |||||
| Standard Sectional Dimension (mm) | Thickness (mm) | Weight (kg/m) | Standard Sectional Dimension (mm) | Thickness (mm) | Weight (kg/m) |
| 75 x 50 | 5 | 4.8 | 150 x 75 | 9 | 15.4 |
| 75 x 50 | 6 | 5.66 | 150 x 75 | 10 | 17.0 |
| 75 x 50 | 8 | 7.43 | 150 x 75 | 12 | 20.2 |
| 100 x 50 | 6 | 6.84 | 150 x 75 | 15 | 24.8 |
| 100 x 50 | 8 | 8.97 | 150 x 90 | 9 | 16.40 |
| 100 x 75 | 6 | 8.04 | 150 x 90 | 10 | 18.20 |
| 100 x 75 | 7 | 9.32 | 150 x 90 | 12 | 21.50 |
| 100 x 75 | 8 | 10.60 | 150 x 90 | 15 | 26.60 |
| 100 x 75 | 9 | 11.80 | 150 x 100 | 9 | 17.10 |
| 100 x 75 | 10 | 13.00 | 150 x 100 | 10 | 18.79 |
| 100 x 75 | 12 | 15.40 | 150 x 100 | 12 | 22.40 |
| 125 x 75 | 7 | 10.70 | 150 x 100 | 15 | 27.70 |
| 125 x 75 | 8 | 12.20 | 200 x 100 | 10 | 23 |
| 125 x 75 | 9 | 13.60 | 200 x 100 | 12 | 27.3 |
| 125 x 75 | 10 | 15.00 | 200 x 100 | 15 | 33.7 |
| 125 x 75 | 12 | 17.80 | |||
